Understanding the Camshaft Actuator System 2010 Camaro V6

Heads, Cams, Valvetrain, Bottom End

Moderator: mrray13

User avatar
Site Admin
Posts: 3199
Joined: Mon Nov 22, 2010 12:46 pm
Location: Allendale, MI
PostPosted: Fri Apr 08, 2011 3:11 pm
Something different than the older cars that most grew up with is the fact that the 3.6l engine has a camshaft actuator System. So what does it really do? Here is some info to read about it.


1 - Camshaft Actuator Vane
2 - Timing Chain Sprocket
3 - Engine Oil Pressure-For retarding the camshaft
4 - Camshaft
5 - Input Signals from Engine Sensors
6 - Engine Control Module (ECM)
7 - Camshaft Actuator Solenoid
8 - Engine Oil Pump
9 - Engine Oil Pressure Supply
10 - Engine Oil Drain
11 - Engine Oil Pressure-For advancing the camshaft
12 - Camshaft Actuator Rotor
13 - Camshaft Position Sensor Reluctor
14 - Camshaft Actuator Lock Pin
15 - Camshaft Actuator Housing

The camshaft actuator system enables the engine control module (ECM) to change camshaft timing of all 4 camshafts while the engine is operating. The CMP actuator assembly (15) varies the camshaft position in response to directional changes in oil pressure. The CMP actuator solenoid valve controls the oil pressure that is applied to advance or retard a camshaft. Modifying camshaft timing under changing engine demand provides better balance between the following performance concerns:

* Engine power output
* Fuel economy
* Lower tailpipe emissions

The CMP actuator solenoid valve (7) is controlled by the ECM. The crankshaft position (CKP) sensor and the CMP sensors are used to monitor changes in camshaft positions. The ECM uses the following information in order to calculate the desired camshaft positions:

* The engine coolant temperature (ECT) sensor
* The calculated engine oil temperature (EOT)
* The mass air flow (MAF) sensor
* The throttle position (TP) sensor
* The vehicle speed sensor (VSS)
* The volumetric efficiency

Operation

The CMP actuator assembly has an outer housing that is driven by an engine timing chain. Inside the assembly is a rotor with fixed vanes that is attached to the camshaft. Oil pressure that is applied to the fixed vanes will rotate a specific camshaft in relationship to the crankshaft. The movement of the intake camshafts will advance the intake valve timing. The movement of the exhaust camshafts will retard the exhaust valve timing. When oil pressure is applied to the return side of the vanes, the camshafts will return to 0 crankshaft degrees, or top dead center (TDC). The CMP actuator solenoid valve directs the oil flow that controls the camshaft movement. The ECM commands the CMP solenoid to move the solenoid plunger and spool valve until oil flows from the advance passage (11). Oil flowing thru the CMP actuator assembly from the CMP solenoid advance passage applies pressure to the advance side of the vanes in the CMP actuator assembly. When the camshaft position is retarded, the CMP actuator solenoid valve directs oil to flow into the CMP actuator assembly from the retard passage (3). The ECM can also command the CMP actuator solenoid valve to stop oil flow from both passages in order to hold the current camshaft position.

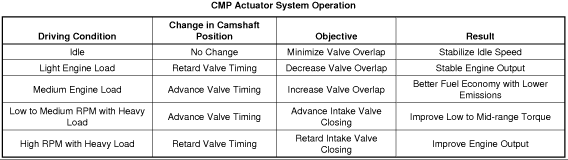

The ECM operates the CMP actuator solenoid valve by pulse width modulation (PWM) of the solenoid coil. The higher the PWM duty cycle, the larger the change in camshaft timing. The CMP actuator assembly also contains a lock pin (14) that prevents movement between the outer housing and the rotor vane assembly. The lock pin is released by oil pressure before any movement in the CMP actuator assembly takes place. The ECM is continuously comparing CMP sensor inputs with CKP sensor input in order to monitor camshaft position and detect any system malfunctions. If a condition exists in either the intake or exhaust camshaft actuator system, the opposite bank, intake or exhaust, camshaft actuator will default to 0 crankshaft degrees.


Credit goes out to Alldata for this information
Hi my name is Travis and I have an addiction, an addiction to anything and everything dealing with v6 camaros. :wave:

****T.O.P. SNIPER****
User avatar
Full Blown Post Whoring Vet
Posts: 7170
Joined: Wed Jan 12, 2011 12:18 pm
Location: Clarkston, Michigan
PostPosted: Fri Apr 08, 2011 3:46 pm
Very interesting information, Thank - you for posting this up Travis. Technology at its best.......... :thumbsup:
for my build check here...http://bowtiev6.com/forum/viewtopic.php?f=28&t=57 ..........................................................TEAM LLT
User avatar
Running 11s
Posts: 1031
Joined: Sun Feb 27, 2011 10:36 am
Location: Florissant,Missouri
PostPosted: Fri Apr 08, 2011 5:22 pm
Thanks Travis. Always wonder how that system works.
Red Ryder 2011 2LT/ RS/ VR / Roto-Fab Cai / ARK DTS cat back exhaust / Defender Works Chrome door sills /RPI Stealth mud guards / DIY painted engine cover, and brake rotors / Suntek Window tint / RX catch can / Team LLT Badges. TEAM LLT
User avatar
BowtieV6 Fanatic
Posts: 1716
Joined: Wed Jan 12, 2011 1:59 pm
Location: San Diego, CA
PostPosted: Sat Apr 09, 2011 12:09 am
Very good read, thanks for posting this. That is by far the most amount of information I've seen about our cams so far.
Sold :(
User avatar
Newbie
Posts: 32
Joined: Mon May 30, 2011 9:22 am
Location: Baltimore, MD
PostPosted: Tue Jun 07, 2011 8:58 am
I've been searching the internet for this camaro specific info all week and it was right under my nose..now Im getting a better picture of ghost cam and e85.
User avatar
Site Admin
Posts: 3199
Joined: Mon Nov 22, 2010 12:46 pm
Location: Allendale, MI
PostPosted: Tue Jun 07, 2011 9:00 am
BMORECAM wrote:I've been searching the internet for this camaro specific info all week and it was right under my nose..now Im getting a better picture of ghost cam and e85.


;) we try. lol

Any other questions or ideas, post up, someone here may have info to help ya out.
Hi my name is Travis and I have an addiction, an addiction to anything and everything dealing with v6 camaros. :wave:

****T.O.P. SNIPER****
User avatar
Newbie
Posts: 32
Joined: Mon May 30, 2011 9:22 am
Location: Baltimore, MD
PostPosted: Tue Jun 07, 2011 9:05 am
travis, I probably could of wrote a book or passed the automobile engineering class with hours and hours of reading I did on valve timing, cam phasing, VVT, etc.. etc.. trying to find more info on vince's theory of more cylinder pressure and increased effective compression ratio for the e85 we are testing. Im like the type that have to understand why is this and why is that. Just receiving a tune in the mail is not good enough for all the good reasons!
User avatar
Gearhead
Posts: 158
Joined: Wed Jan 19, 2011 8:33 pm
Location: Gloucester County, New Jersey
PostPosted: Tue Jun 07, 2011 7:54 pm
great write up...i had a bad cam sensor on mine...took the dealership 5 attempts to figure out why my CEL was going on and off every 20 miles or so
BowTie V6's First Ever Featured Ride!
-Team LLT
A memeber of The South Jersey Camaro Club
